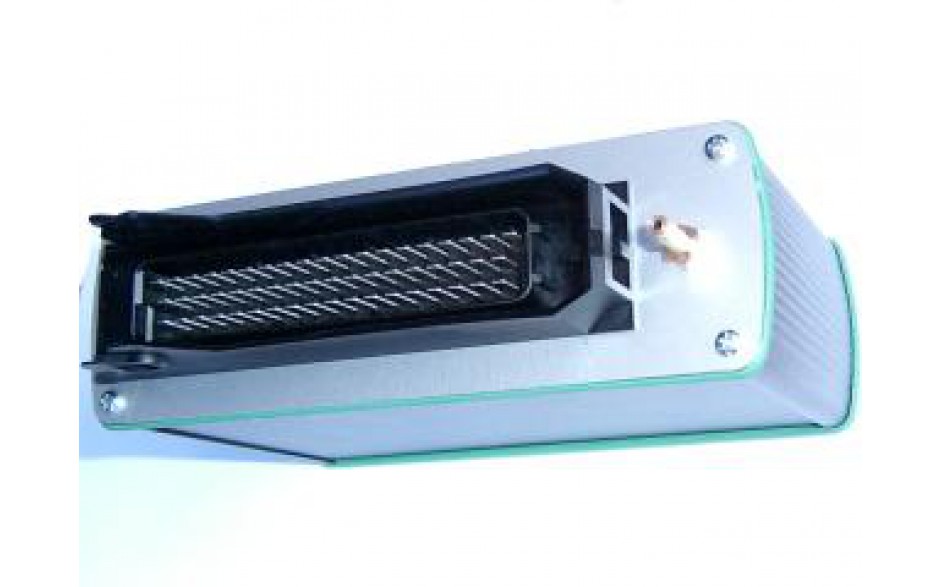

VEMS v3.x ECU with Motronic55 connector and internal MAP sensor
We recommend VEMS ECU purchase from HERE or vems.hu resellers. BEFORE purchasing (claimed new or secondhand) VEMS motronic55 controller from third party, negotiate the serialnumber, and write the serialnumber (vemstune displays serialnr on the statusline when connected) in the contract (and insist on void contract if serialnr was specified wrong). If serialnr: 2595, 2731, 2934, 2904, 3321 contact us.
The Audi AAN (same pinout as the ABY / ADU) and the Audi 3B were the first applications (note that 3B has different pinout with only 1 ignition channel). These use special "auditrigger" 3 sensor trigger system with the 135 tooth flywheel teeth VR, crankhome-VR and cam-HALL sensor.
The audi factory MAT (manifold air temperature)-sensor is PTC type, so 430 Ohm pullup resistor is used for better precision. If you replace MAT sensor with an NTC-type sensor, write "weak (2k7) MAT pullup for NTC MAT" in the order note. (Use this exact wording, please).
By default, the JPT55/pin5 (carbon-canister-valve control pin) is not connected. However, at order time the following order comment can be useful for AAN/ADU/ABY : "JPT55/pin5 = IGBT and +1 analog input on SSC6"
When installing the controller, click here for steps REALLY. COME BACK TO THIS PAGE WHEN YOU RECEIVE YOUR DEVICE. By following the instructions you will have an editable page with some DVM measurements (Ohm and voltages), saved vemslog of startup attempts. Following the instructions is required for support (if a support request includes the page URL, support will help, otherwise not until one follows the instructions - some useful data is really required so support can start review and help - often will request more specific measurements.)
For Audis, VemsTune/QuickStartAudi procedure helps to get an initial starting config (Note: "with cam-HALL" inverter is standard. Normally similar config is uploaded in factory after hardware testing if not requested otherwise in the order note).
Bosch made many motronic ECU-s with this connector, but different (incompatible!) pinout for different carmakers.
Other engines already tested with VEMS motronic55 boxes:

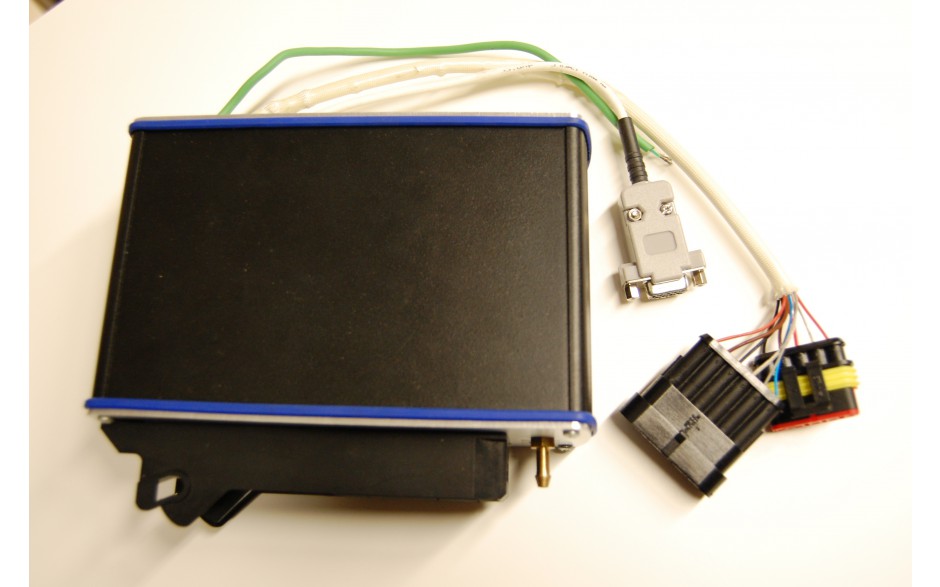

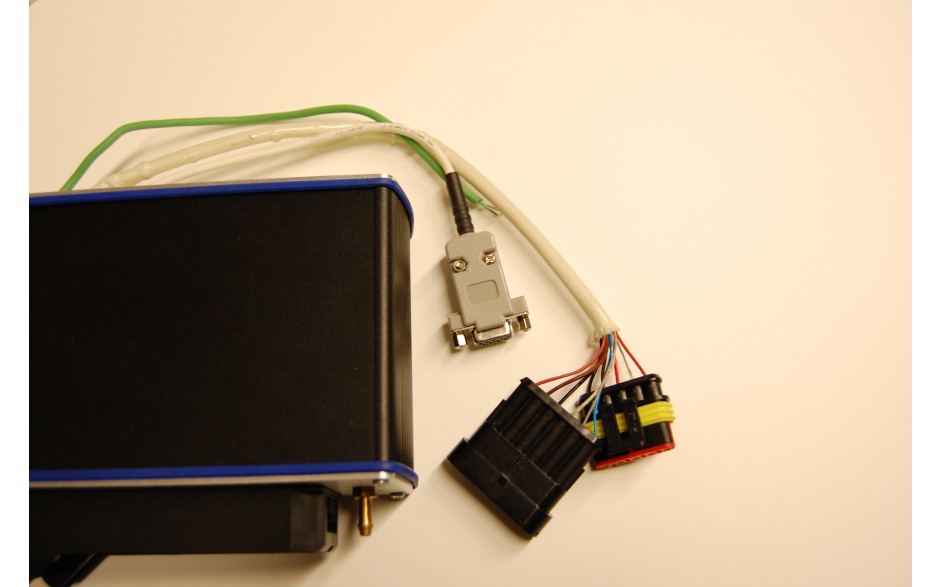

Wideband controller (inside ECU) and wideband connector is included. LSU4 (wideband O2) sensor is optional, but highly recommended.
Specify the engine code in the order note. Also specify if NTC type (eg. audi 1.8T) MAT sensor is used in an audi (instead of the factory PTC type sensor).
We recommend VEMS ECU purchase from HERE or vems.hu resellers. BEFORE purchasing (claimed new or secondhand) VEMS motronic55 controller from third party, negotiate the serialnumber, and write the serialnumber (vemstune displays serialnr on the statusline when connected) in the contract (and insist on void contract if serialnr was specified wrong). If serialnr: 2595, 2731, 2934, 2904, 3321 contact us.
The Audi AAN (same pinout as the ABY / ADU) and the Audi 3B were the first applications (note that 3B has different pinout with only 1 ignition channel). These use special "auditrigger" 3 sensor trigger system with the 135 tooth flywheel teeth VR, crankhome-VR and cam-HALL sensor.
The audi factory MAT (manifold air temperature)-sensor is PTC type, so 430 Ohm pullup resistor is used for better precision. If you replace MAT sensor with an NTC-type sensor, write "weak (2k7) MAT pullup for NTC MAT" in the order note. (Use this exact wording, please).
By default, the JPT55/pin5 (carbon-canister-valve control pin) is not connected. However, at order time the following order comment can be useful for AAN/ADU/ABY : "JPT55/pin5 = IGBT and +1 analog input on SSC6"
When installing the controller, click here for steps REALLY. COME BACK TO THIS PAGE WHEN YOU RECEIVE YOUR DEVICE. By following the instructions you will have an editable page with some DVM measurements (Ohm and voltages), saved vemslog of startup attempts. Following the instructions is required for support (if a support request includes the page URL, support will help, otherwise not until one follows the instructions - some useful data is really required so support can start review and help - often will request more specific measurements.)
For Audis, VemsTune/QuickStartAudi procedure helps to get an initial starting config (Note: "with cam-HALL" inverter is standard. Normally similar config is uploaded in factory after hardware testing if not requested otherwise in the order note).
Bosch made many motronic ECU-s with this connector, but different (incompatible!) pinout for different carmakers.
Other engines already tested with VEMS motronic55 boxes:
- BMW inline 6cyl (M20B25 and M5) click here for BMW specific notes
- Peugeot (106 GTI) (also some Citroen )
- MAT input: choose the "BMW or NTC" option only if you want weak (2k7 internal) MAT-pullup, because you order (or already have) this or similar NTC-type MAT(IAT) sensor. Note: the MAT reading resolution is 1 Celsius with NTC type, while 2C with the factory PTC type sensor (and 4-5C with firmwares older than 1.1.4x).
- The default MAP sensor is 400 kPa for audi types. For non-audi, or if you want other MAP sensor (none / 115kPa / 250 kPa / 300 kPa) specify in the order note. 300 kPa is often enough and more reasonable, perfect for about 1.8bar boost) (also on your wiki MembersPage)
- as the factory setups have no WBO2 (Bosch LSU4 wideband sensor), and WBO2 needs min 4 signals between ECU and sensor (the sensor has a 5th pin for supply and 6th pin that need not be used if the more precise software adjustable calibration scheme is used), a few wires must be used for WBO2. It is often simplest to pull in a few wires in protecting tube to the cabin, while others prefer to hijack some non-used wires (like the MAF-wires, MAF sensor often removed anyway). For this,
- or any other special wish or preference write on your wiki MembersPage, and paste the link in the order note
Wideband controller (inside ECU) and wideband connector is included. LSU4 (wideband O2) sensor is optional, but highly recommended.
Specify the engine code in the order note. Also specify if NTC type (eg. audi 1.8T) MAT sensor is used in an audi (instead of the factory PTC type sensor).
