Siemens 630cc (60lb) Injector

Be the first to review this product

Availability: In stock


Quick Overview



Siemens high-impedance (12.6ohm) injector.
L107 Siemens / Mototron Deka 4 (Flow-Matched sets to 1%)
length: 64mm between O-rings (middle to middle)
other names: Siemens FI114961 - Mototron INJ-GAS-006 - Accel 74620L - MSD/Edge 2030
Static Flow Rate at different fuel pressures:
  • 60lb/hr (sometimes called 63 lb/hr). For estimations: with BSFC=0.5lb/(HP*hr) this means 120 HP/cylinder at 100% duty. You want to apply your estimated BSFC, max duty and add some margin. Also note that BSFC is higher with Ethanol based fuels like E85.
  • 630cc/min @ 3bar (=300kPa = 43.5 psi)
  • 727cc/min @ 4bar (=400kPa= 58 psi)
Note that some shops specify higher flowrate (668 cc/min @ 3bar) for same injectors, even a shop that specified 630 cc/min @ 3bar earlier. They might use lower viscosity test-fluid now instead of pump gas.

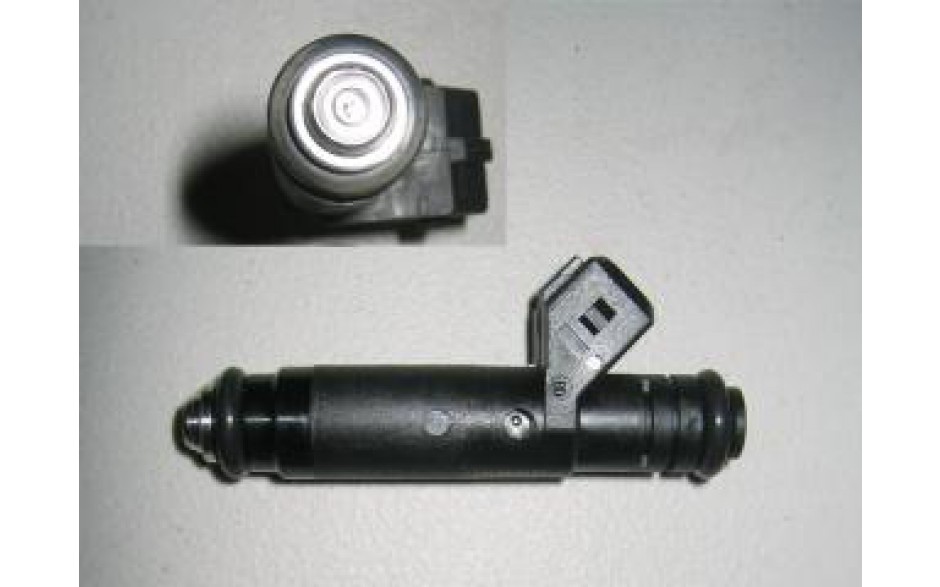

New style, all plastic, fully compatible with old style (dark grey color, pencil style, standard Bosch/AMP connector)
